大功率电热水器

产品名称: 大功率电热水器
地区: 浙江省 绍兴市 嵊州市

详细信息

产品摘要

大功率电热水器食品级硅钛金内胆,进口瓷釉,采用全自动湿喷技术将瓷釉均匀地喷涂在经脱脂、抛丸处理后的超强专用钢板上,在900℃高温下烧结,将瓷釉与钢板完全熔合,使OTT“硅钛金”内胆的抗腐蚀、抗沸水失重(达到:Y级标准)、性能指标达到世界一流水平。

产品描述

规格参数 Specifications

性能特点 Prouduct Features
高度集成,现场安装快捷。(一体化安装)
Highly integrated ,convenient for site installation (all-in-oneinstallation).
*佳燃气辅助太阳能方式,运行成本*低,澳标:Rec≥35,与同类产品相比节能≥20%。
The best type of gas boosted solar water heater ,with the lowestoperation cost, according to Australia Standard :REC≥35, it will savemore than 20% energy comparedto congeneric products.
户外安装,防风、防雨、防紫外线。
Outdoor installation, waterproof , anti-UV.
热水产率>90%。
Hot water delivery > 90%.
食品级硅钛金内胆,进口瓷釉,采用全自动湿喷技术将瓷釉均匀地喷涂在经脱脂、抛丸处理后的超强专用钢板上,在900℃高温下烧结,将瓷釉与钢板完全熔合,使OTT“硅钛金”内胆的抗腐蚀、抗沸水失重(达到:Y级标准)、性能指标达到世界一流水平。
Food grade silicon titanium inner tank, automatically wet-spary importedenamel frit to the special carbon steel which has been degreased andblasted, then burn at a high temp of 900℃, enamel and steel will behighly fused, this makes OTT’s silicon titanium inner tank to achievethe world first-class level of anti-corrosion, resistance to waterboiling and water vapor(to Class Y standard ).
超厚环保无聚氨脂高压整体发泡,发泡均匀,厚度≥50MM,密度≥35KG/M3,具有超强的保温性能,能效等级符合国标(GB21519-2008)一级,且符合澳洲AS4692能效等级标准。
Super-thickness, environmental protection, fluorine-free polyurethaneadopts high pressure integral foaming, with even foaming, thickness≥50mm, density≥35 kg/M3, with super insulation performance, energyefficiency level complys with GB(GB21519-2008)Class I, also meets theenergy efficiency level standard of AS4692.
超大阳极保护。以德国DIN4753标准的1.35倍配置的优*阳极镁棒,比一般电热水器的阳极镁棒大100%以上,从而更有效地提高内胆抗腐防垢性能。
Super-large anode. High quality anode is 1.35 times larger than GermanyDIN4753 standard anode, and 2 times larger than the anode of generalelectric water heater, it can more effectively improve theanti-corrosion and anti-scaling performance of the inner tank.
耐高温高压,超厚优*钢板。厚达2.5~3.5mm的优*超强度专用钢板,经过全自动卷板机成型,配合进口程控焊接设备,确保OTT“硅钛金”内胆的卓*承压能力(通过澳洲标准规定的25万次的疲劳实验,爆破压力高达45Kgf/cm2)。工作压力10~8KG,并能通过20KG静压实验。
High temperature and high pressure resistant, super-thickness, highquality steel plate.  Thickness of the plate is 2.5-3.5 mm, after fullyautomatic bending roll machine to shape, plus importedprogram-controlled welding equipment to ensure the pressure bearingcapacity of OTT’s silicon titanium inner tank.( achieve 250000 rounds offatigue test of Australian standard, the burst pressure is up to 45Kgf/cm2). Working pressure is 10-8KG, and can pass 20KG static test.
优*的彩钢板外壳。美观耐用,防水防腐,防紫外线。户外户内均可使用,整机防水防尘等级达到IP34。
Premium colorbond casing with good appearance and durability,waterproof, anti-corrosion ,and anti-UV. Both outdoor and indoor use,waterproof and dustproof level of the unit is IP34.
澳洲原创设计,整机通过澳洲标准检测,符合澳洲WaterMark及相关标准要求。热水出水率,热损失测试均通过澳洲标准且远优于标准数值。热水出水率比澳洲标准高14%,热损失数据比澳洲标准低8%。与水接触的所有配件均达到澳大利亚AS/NZS4020与饮用水接触的产品测试标准。
Australian original design, the unit passes Australian standard test andcomplys with the relative requirements of Australian WaterMark. Hotwater delivery and heat loss test results are far better than standardresults. Hot water delivery is 14% higher than AS standard and heat lossis 8% lower than AS standard. All spare parts contact with water meetthe requirements of AS/NZS4020 indicating test standard of the partscontact with potable wate

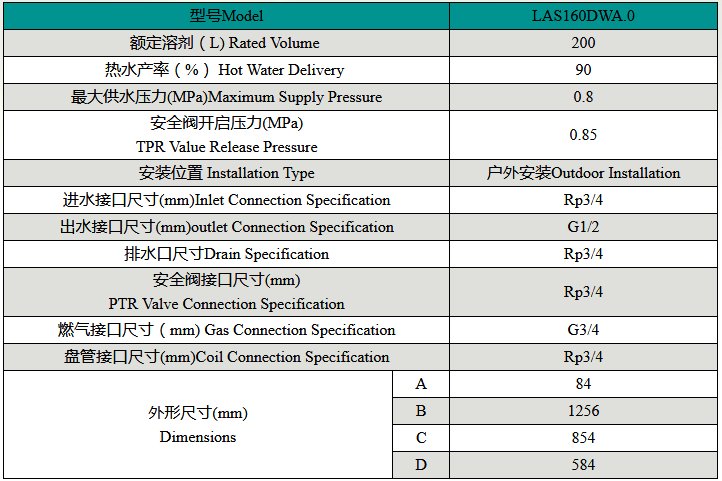

规格参数 Specifications

型号Model LAS160DWA.0
额定溶剂(L) Rated Volume  200
热水产率(%) Hot Water Delivery  90
*大供水压力(MPa)Maximum Supply Pressure 0.8
安全阀开启压力(MPa)
TPR Value Release Pressure
0.85
安装位置 Installation Type 户外安装Outdoor Installation
进水接口尺寸(mm)Inlet Connection Specification Rp3/4
出水接口尺寸(mm)outlet Connection Specification G1/2
排水口尺寸Drain Specification Rp3/4
安全阀接口尺寸(mm)
PTR Valve Connection Specification
Rp3/4
燃气接口尺寸(mm) Gas Connection Specification G3/4
盘管接口尺寸(mm)Coil Connection Specification Rp3/4
外形尺寸(mm)
Dimensions
A 84
B 1256
C 854
D 584
